Connectivity technology
Wi-Fi, Ethernet
Brand
zimaboard
Colour
ZimaBoard 832 8G 32G
Included components
Single Board Server
Item weight
0.7 Kilograms
Data transfer rate
1000 Gigabits Per Second



Overview:

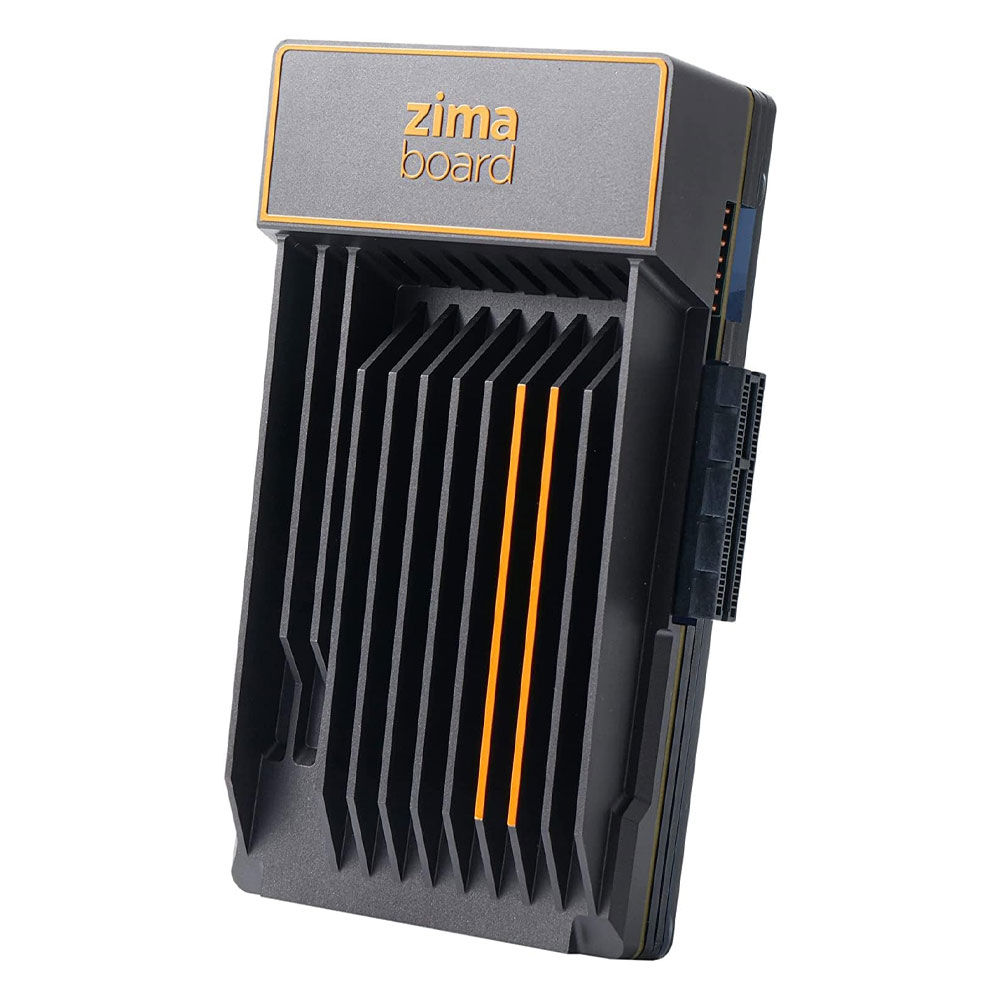

The ZimaBoard 832 is a versatile x86 single-board server designed for a wide range of applications, from home servers and media centers to network appliances and IoT gateways. It distinguishes itself with its x86 architecture, expandability, and user-friendly software.
Key Features:
x86 Architecture: Offers compatibility with a broad range of operating systems and software.
Expandable: Features a PCIe 2.0 x4 slot for adding various expansion cards.
Dual Gigabit Ethernet: Provides robust networking capabilities.
SATA Connectivity: Supports multiple SATA drives for ample storage.
CasaOS Pre-installed: User-friendly home cloud operating system.
Passive Cooling: Enables quiet and reliable operation.
Technical Specifications:
Processor: Intel Celeron N3450 (Quad-Core, 1.1 GHz base, up to 2.2 GHz burst)
Graphics: Intel HD Graphics 500
Memory: 8GB LPDDR4
Onboard Storage: 32GB eMMC 5.1
Storage:
2 x SATA 6.0 Gb/s ports
Networking:
2 x Gigabit Ethernet LAN ports
USB:
2 x USB 3.0 ports
PCIe:
1 x PCIe 2.0 x4 slot
Display:
1 x Mini-DisplayPort 1.2 (4K @ 60Hz)
Power:
DC 12V (5.5 x 2.5 mm)
Cooling:
Passive
Operating Systems:
CasaOS (pre-installed)
Compatible with: Linux, Windows, OpenWrt, pfSense, Android, LibreELEC
Dimensions:
138.7 x 81.4 x 34.9 mm
Weight:
278g
Applications:
Personal NAS (Network Attached Storage)
Media Server (Plex, etc.)
VPN Router
Firewall
Home Automation
IoT Gateway
